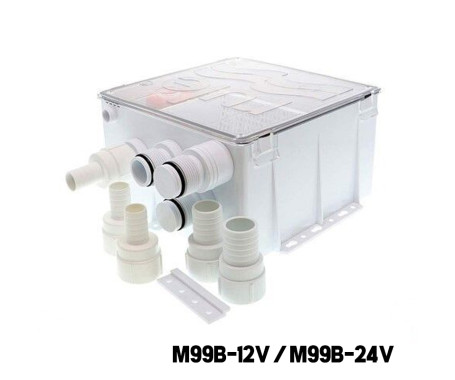

RULE - 1100 GPH Shower Drain System Multi-Port Inlet

M99B-12V / M99B-24V

RULE M99B - RULE MULTI-PORT SHOWER DRAIN SYSTEM, 1100 GPH

MULTI-PORT INLET 12V & 24V

M99B-12

Voltage: 12VDC, Amp Draw: 3.7 AMP,

Fuse Size: 7.5 AMP

M99B-24

Voltage: 24VDC, Amp Draw: 1.8 AMP,

Fuse Size: 4 AMP

SPECIFICATIONS:

• Connections: For 19mm (3/4"), 25mm (1") or 29mm (1 1/8") bore hose on inlet and outlet. Straight or 90º Elbow

• Dimensions: 230mm x 240mm x 130mm high.

• Fuse Size: 5(amp)

• Output: 69 litres/minute (15 gallons/minute). Max recommended discharge head 3m Contains Rule 1100 Submersible

• Pump controlled by a Rule-a-Matic float switch.

• Clip in, removable pump, strainer and cover allows easy cleaning and servicing.

• Sealed clear screw-down cover.

• Integral non-return valve.

• Ignition protected.

• Multi-port inlet.
